Draco Vario UltraAdvanced 4K/60 DVI / HDMI / DisplayPort KVM Extenders

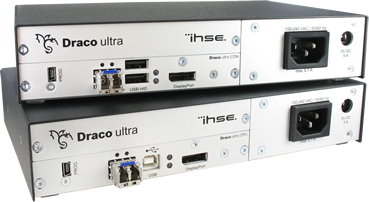

Draco Vario Ultra
  • Visually lossless transmission
  • No frame drops
  • Supports 4K/60 with 30-bit colour
  • DVI, HDMI or DisplayPort interfaces
  • Embedded audio transmission
  • 1Gb (CATx/Fibre) or 3Gb (Fibre)
  • Modular product range
  • Single-sided connectivity

For ultimate performance, IHSE's Draco Vario Ultra KVM extender range is designed for the most demanding applications where frame-dropping cannot be tolerated. Available in a number of models, these members of the Draco Vario family all provide a visually lossless experience for DVI / HDMI / DisplayPort 1.1 or DisplayPort 1.2 with extremely low latency.

Top-end DisplayPort 1.2 and HDMI 2.0 models handle 4K resolutions up to 4096 x 2160 and 3840 x 2160 at a real 60 Hz refresh rate with full colour depth (30-bit, 4:4:4) over a 3Gb fibre link.

Other models in the range offer cutting-edge video over a 1Gb link for HD-resolution applications such as games development that require perfectly smooth panning, or superior performance for Dual-Head consoles.

Designed to be integrated within Draco Tera matrix solutions, every element of the Draco Ultra has been designed specifically for the most demanding applications. This is why their products are used in the most highly-pressurised, mission critical environments in the world by the biggest companies and organisations.

Design your Draco Ultra KVM Extender solution with our configurator tool

At a glance features

  • CPU operation from a remote workstation with a DVI/HDMI/DisplayPort monitor and USB HID devices
  • Transmission of fully-digital video signals up to 4K DCI (4096 x 2160) and UHD (3840 x 2160)
  • Use multiple synchronised extenders for even higher resolutions - 8K & beyond
  • Lossless video codec, no frame drops
  • Full colour depth, 30-bit (Deep Colour), 4:4:4 (DP 1.2)
  • PCM audio format can be transferred via the DisplayPort interface (up to 96 kHz)
  • Available in versions supporting DVI / HDMI 2.0 / DisplayPort 1.1 or 1.2
  • Link interface options: 1Gb (CATx/Fibre) or 3Gb (Fibre)
  • Optional redundant data link for 24/7 availability
  • Totally modular: choice of chassis sizes
  • Compatible with all major operating systems – Windows, OSX and Linux
