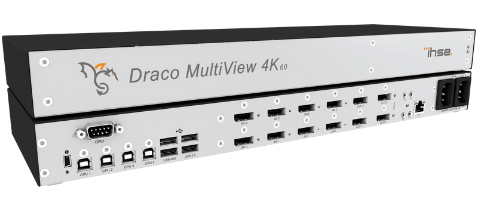

Draco MultiviewDisplay/Switch Single/Dual-Head computers onto a single monitor

Draco Multiview
  • Switch 4K60 DP and USB signals
  • Switch via mouse, keyboard or buttons
  • Monitor multiple video signals
  • GPIO for external LEDs / push button
  • PIP modes
  • SNMP Monitoring

The new Draco MultiView for DisplayPort signals at resolutions up to 4K60, allowing real-time display of multiple video signals on one or two monitors with picture-in-picture function.

The use of multi-viewer devices facilitates the monitoring of several video signals in your field of vision, reducing costs and complexity by having only one large monitor. Typical areas of application for multiviewer devices are control rooms, television stations and monitoring centers, for example in traffic surveillance.

The Draco MultiView allows several computers to be operated from a single workstation.

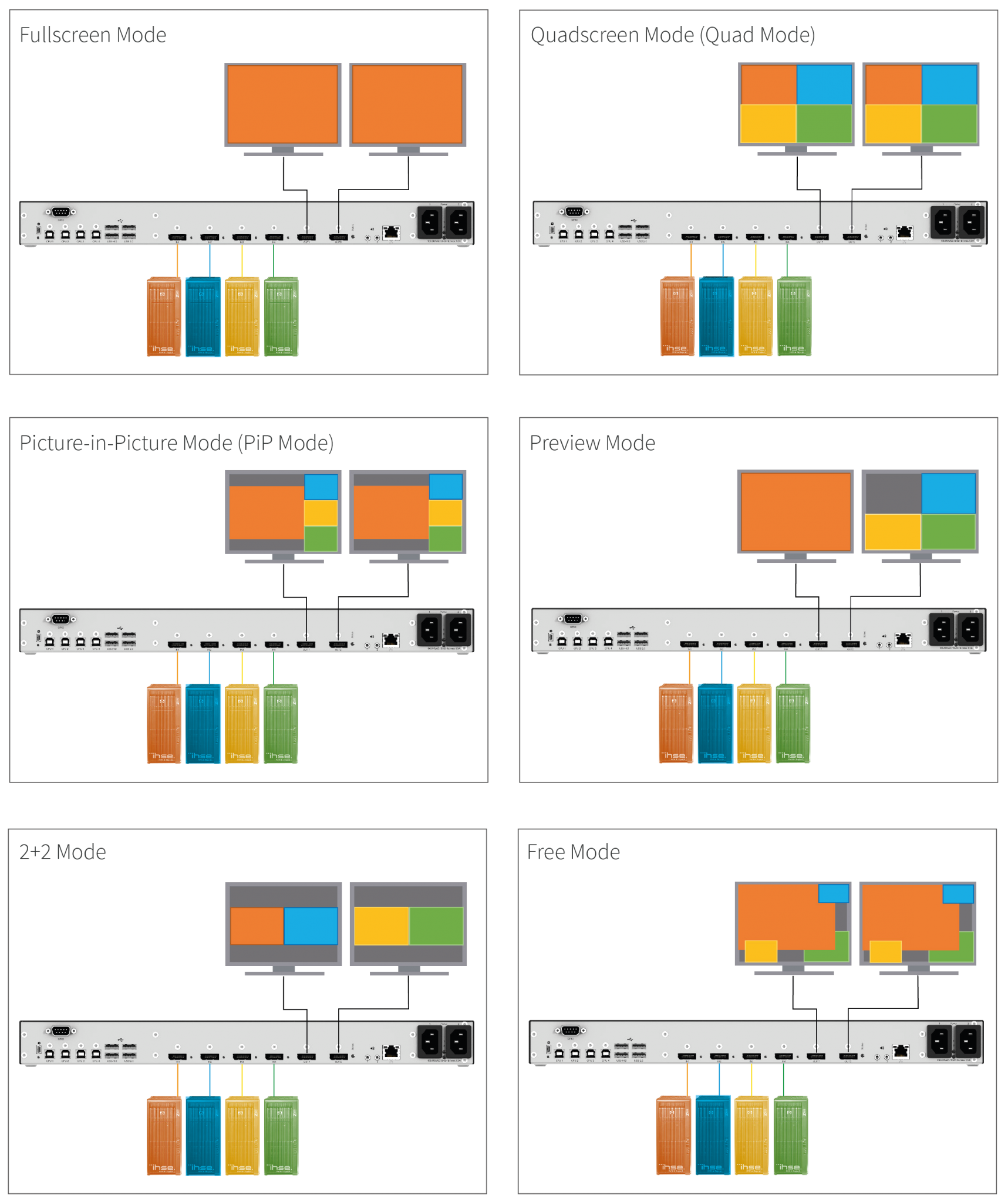

The device supports all typical visualization scenarios as they can be found in a control room setting. The individual input signals can be arranged in any order and displayed in different modes, for example FullScreen, SplitScreen or Picture-in-Picture.

Via hotkey or API, it is possible to switch instantly between the required layouts or source signals allowing you to work ergonomically and effectively.

Convenient switching by mouse movement
Switching between video sources can be done easily and in real-time by moving the mouse to the required content.
Alternatively you can switch with keyboard commands or with external push buttons.

Never miss any audio alerts
DisplayPort embedded audio signals can be output to a loudspeaker (analog or digital) via a separate audio interface. Either the audio track of the currently active monitor, or a combination of the various audio signals can be output so that the relevant signal tones can be heard at all times, regardless of the source.

Fail-safe and space-saving
The Draco MultiView has a redundant power supply and extensive SNMP options for status monitoring (video, PSU, temperature and switching status).

Convenient switching by mouse movement
Switching between video sources can be done easily and in real-time by moving the mouse to the required content. Alternatively you can switch with keyboard commands or with external push buttons.

Never miss any audio alerts
The embedded audio signals can be output to a loudspeaker (analog or digital) via a separate audio interface. Either the audio track of the currently active monitor or a combination of the various audio signals can be output so that relevant signal tones can be heard at all times, regardless of the source.

Fail-safe and space-saving
The Multiviewer has redundant power supply and extensive SNMP options for status monitoring (video, PSU, temperature and switching status).

The Draco MultiView fits seamlessly into the modular Draco vario design and can be mounted under a table to save space. The dimensions correspond exactly to those of a 6-slot Draco vario chassis.

Compatible with Draco extenders and switches
The Draco MultiView is a standalone device, and is fully compatible with the Draco range of KVM Extenders and the Draco Tera KVM Matrix Switch. Several mounting options are available.

First deliveries in Q2 2020. Available as Single-Head and Dual-Head Multiviewers.

At a glance features

  • Integrated single-head / dual-head switch for 4K60 DisplayPort video and USB signals
  • Facilitates the monitoring of numerous video signals at a glance
  • Based on 1U BODY6 chassis with redundant power supply for single-head and dual-head
  • GPIO for external LEDs or control via push button
  • PIP modes
  • Scaling function
  • Switching via mouse movement, keyboard or optionally connectable buttons (multi-screen control)
  • SNMP Monitoring (Video Status, PSU Status, Temp, Switchting Status)
  • Typical applications of multiviewers are monitoring and control centers, e.g. in air traffic control
